Palisade Fence

Product Description

Palisade Fence is an excellent option for locations requiring a higher level security and vandal resistance. It is popular for schools and industrial sites. Because palisade security fencing is high damage resistant and difficult to climb. The pales are made of hot formed and cold rolled steel strips and generally there are two horizontal rails fitted to ensure the integrity of the fence. There are mainly three type s of pales: "W" profile, "D" profile and angle iron. You also have different choices for the top of pales.

Designed with smooth surface, rigidity structure, sharp prongs and narrow pale spacing, the palisade fences are normally considered to be difficult even impossible to climb, straddle, grab and gain foot-hold. Thereby, it effective deters would to be intruders and trespassers, protects your assets, office and factory from damages.

Most of all, the palisade security fence can be installed with flexibility to follow the profile of uneven terrains and offers a professional feel to your areas. So the fences are always close to the ground, no oversized gaps that may cause security issues anymore!

Product Specification

Panel sizeW PALE
HeightWidthPale ThicknessQty: PaleCross RailsHeightI Post Section
1.8m2.75m2/2.5/3mm17pcs50×50×6mm2400100×55mm or 102x44mm
2.1m2.75m2/2.5/3mm17pcs50×50×6mm2900100×55mm or 102x44mm
2.4m2.75m2/2.5/3mm17pcs50×50×6mm3200100×55mm or 102x44mm
3.0m2.75m2/2.5/3mm17pcs50×50×6mm3900100×55mm or 102x44mm
3.6m2.75m2/2.5/3mm17pcs50×50×6mm4500100×55mm or 102x44mm

W Pale section: 62mm

1.8m2.75m1.5/2/2.5mm17pcs40×40×4mm    or50×50×5mm2400100×55mm or 102x44mm
2.1m2.75m1.5/2/2.5mm17pcs40×40×4mm    or50×50×5mm2900100×55mm or 102x44mm
2.4m2.75m1.5/2/2.5mm17pcs40×40×4mm    or50×50×5mm3200100×55mm or 102x44mm
3.0m2.75m1.5/2/2.5mm17pcs40×40×4mm    or50×50×5mm3900100×55mm or 102x44mm
3.6m2.75m1.5/2/2.5mm17pcs40×40×4mm    or50×50×5mm4500100×55mm or 102x44mm


Panel sizeD Pale section:65mmRailsPost
HeightWidthPale ThicknessQty: PaleCross RailsHeightI Post Section
1.8m2.75m1.5/2/2.5/3mm17pcs40×40×4mm    or50×50×5mm2400100×55mm or 102x44mm
2.1m2.75m1.5/2/2.5/3mm17pcs40×40×4mm    or50×50×5mm2900100×55mm or 102x44mm
2.4m2.75m1.5/2/2.5/3mm17pcs40×40×4mm    or50×50×5mm3200100×55mm or 102x44mm
3.0m2.75m1.5/2/2.5/3mm17pcs40×40×4mm    or50×50×5mm3900100×55mm or 102x44mm
3.6m2.75m1.5/2/2.5/3mm17pcs40×40×4mm    or50×50×5mm4500100×55mm or 102x44mm

 Note: Special size and specifications can be made according to customers requires.

Product Details

Product Type:

Surface treatment

Hot dipped galvanized: Hot dipped galvanizing after welding, this coating can effectively prevent oxidation corrosion and prolong the service life of steel.

PVC coating: high quality powder for spraying, which combines with the galvanized layer on surface to form a more effective protective layer. lt can better prevent the steel from oxidation and corosion. So steel palisade fencing can stay beautiful and strong for a longer time.

Head Types of Palisade Pales

Palisade fence pales are available in various types of heads to prevent intruders from creeping into the area.

One pointed type

Triple pointed & splayed type

Rounded type,

Round & notched type.

Square type.

Palisade fence post type

H beam post ( RSJ post )

Square Post

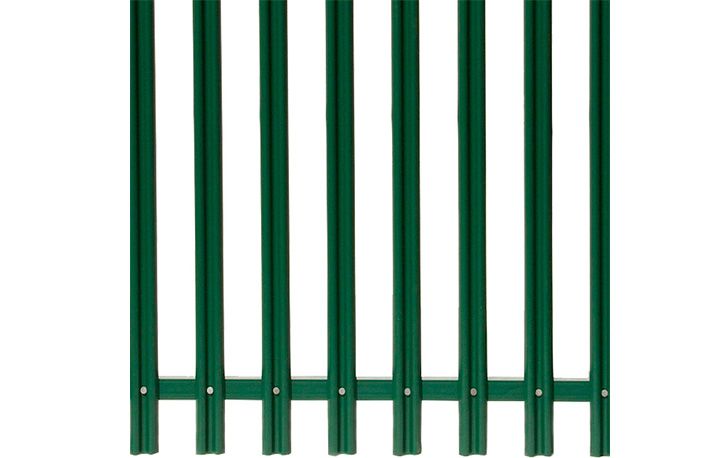

Palisade fence feature

Palisade fence feature

1. High security.

2. Most stronge design.

3. 10-Year limited warranty.

4. Galvanized steel components.

5. Suitable to all kinds of surrounding.

6. Panels mounted inside post.

7. Durable polyester powder coating finish.

As a professional palisade fencing supplier, Mclassic Metal has full industry chain and strict quality control flow, with superior raw material, highly skilled technicians, advanced equipment, dedicated workmanship, perfect surface treatment, those to ensure a state of art product. We can also customize steel palisade fence according to the customer's conditions.

Product Packing & Shipping

Product Packing & Shipping

Galvanized Steel Palisade Fences: will be placed on iron or wooden pallets, tied with iron strapping, and the edges of the fence wil be protected with cardboard. Finally, wrapped with plastic wrap.

PVC & Powder Coated Steel Palisade Fences: Each, or every five tightly wrapped with plastic flm, placed on iron pallets, or wooden palets. The top and bottom covered with a whole wooden board. protection, finally fxed with a wide iron strapping to ensure the transport wil not be shaken, friction caused by palisade fence pales damage.


Q: Are you manufacturer or trader?

A: We are manufacturer,and we are in fence field for more than 20 years.

Q: What's the lead time?

A: Normally our lead time is 15-25 days after we received the down payment. Urgent order can be negotiated.

Q: Can you provide samples?

A: Yes, we can provide samples with free charge, but the express cost need you pay first. When you placed the order, we will deduct the express cost from the contract amount.

Q: How do you control the goods quality?

A: We have the strict Quality Control System. And our quality inspector will record the production process and inspection from beginning to end in the form of photos or videos to you.

Q: Do you have quality guaranteed?

A: Yes, most of our products have a more than 10 years Quality Guarantee.

Q: Could you supply Door-to-Door Delivery?

A: Yes, we are very good at Door to Door Delivery, please inform me your detailed address, then I will quote you the freight cost to your home directly.

Q: How do we go to your factory for visiting?

A: Please inform me your flight time, we will pick you up at our nearby airport, then drive to our factory for visiting.
