Gabion Basket

Product Description

Gabion boxes are made of triple twist hexagonal woven wire mesh. The wire can be zinc-5% aluminum alloy (galfan) wire, low carbon steel wire, stainless steel wire and iron wire.

Gabions and geotextiles are normally used together to reduce water velocities and to re-capture river bed sediment in streams. Flat Gabions, called River or Reno Mattresses, are widely used in river courses where soil erosion is a problem over a large flat or sloped area in need of protection against soil loss or scour.

Gabion baskets are used mostly in the civil engineering industry, especially in the construction of roadway drainage structures. Recently however, due to the environmental benefits associated with gabions, they are being used in many various applications and industries.

Product Specification

Gabion Basket
Gabion size(m)Mesh openingWire diameterSurface treatment

60 x 80mm

80 x 100mm

80 x 120mm

100 x 120mm

120 x 150mm




PVC coated

PE coated


Product Details

Product Type:

Material: Low carbon steel wire or PVC coated wire

Wire diameter.: 2.0mm-6.0mm

Color: Green, black, silver or other colors

Opening: 60*80 80*100 80*120 100*120 100*150 120*150mm

Box size: 1x1x0.3, 1x1x0.5, 2x1x0.3, 2x1x0.5 ,2x1x1,4x2x1m or as your request

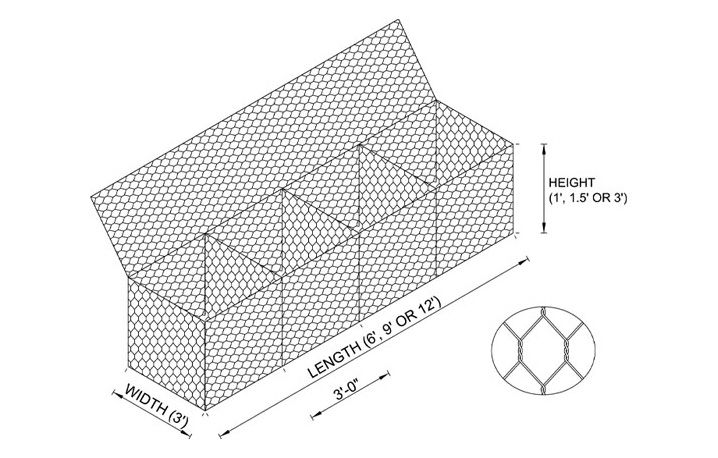

Gabion Basket Features

Gabion Basket Features

● Strength and flexibility.

● Good decotative,not only used on river area,but also can used on decorative wall

● The double twisted hexagonal mesh means that the wire will not unravel when cut which allows the gabions to be easily cut and shaped to suit project requirements.

● Strong anti-corrosion:heavy galvanized wire or Galfan wire,or glued PVC coated wire,PE coated wire to make the Gabion Basket can more improve capacity of anti-corrosion,can adapted to sea environment.

● Economy: Wire mesh gabions are less expensive than most construction materials. Graded stone fill is usually locally available. Waste materials such as crushed concrete may be specified in place of stone.

As an experienced gabion basket supplier, Mclassic Metal has full industry chain and strict quality control flow, with superior raw material, highly skilled technicians, advanced equipment, dedicated workmanship, perfect surface treatment, those to ensure state of art gabion cages for sale. We can also customize gabion wire mesh according to the customer's conditions.

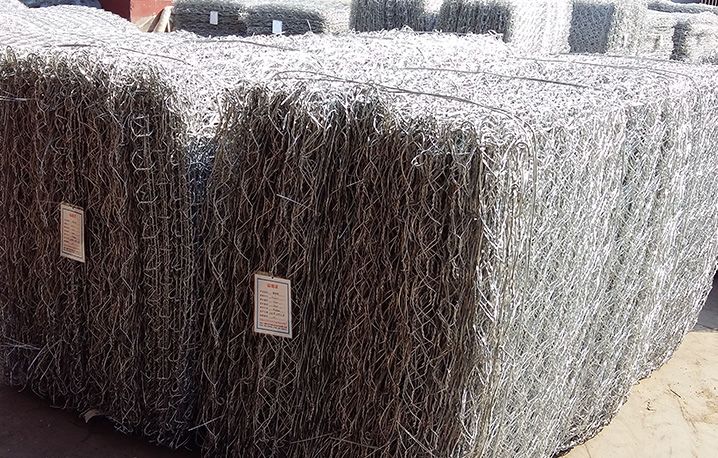

Product Packing & Shipping

Product Packing & Shipping

50-100 gabion wire mesh /per bundle,

Wrapped with 2 to steel strips, it is compressed and to be bundled, then with pallets together

Gabion wire mesh could be made to roll package, when you get the goods, you could cut to gabion box by yourself. we also could pack according to customers' requirements.


Q: Are you manufacturer or trader?

A: We are manufacturer, and we are in fence field for more than 20 years.

Q: What's the lead time?

A: Normally our lead time is 15-25 days after we received the down payment. Urgent order can be negotiated.

Q: Can you provide samples?

A: Yes, we can provide samples with free charge, but the express cost need you pay first. When you placed the order, we will deduct the express cost from the contract amount.

Q: How do you control the goods quality?

A: We have the strict Quality Control System. And our quality inspector will record the production process and inspection from beginning to end in the form of photos or videos to you.

Q: Do you have quality guaranteed?

A: Yes, most of our products have a more than 10 years Quality Guarantee.

Q: Could you supply Door-to-Door Delivery?

A: Yes, we are very good at Door to Door Delivery, please inform me your detailed address, then I will quote you the freight cost to your home directly.

Q: How do we go to your factory for visiting?

A: Please inform me your flight time, we will pick you up at our nearby airport, then drive to our factory for visiting.
