Welded Gabion Box

Product Description

Welded Gabion Box are wire mesh containers welded with high quality steel wire, then connected by spirals, assembled with spacers/stiffeners. They can be filled on site with hard durable stone materials to form mass gravity retaining structures. Owing to their inflexibility, welded gabion box can adapt to different settlement or be used in water courses. The surface is passivated and plasticized by processes such as electro-galvanizing, hot-dip galvanizing, dip-plastic coating or Galfan(Zinc-aluminium coating).

Product Specification

Normal Box sizes (m)NO. of diaphragms (pcs)Capacity ( )
0.5 x 0.5 x 0.500.125
1 x 0.5 x 0.500.25
1 x 1 x 0.500.5
1 x 1 x 101
1.5 x 0.5 x 0.500.325
1.5 x 1 x 0.500.75
1.5 x 1 x 101.5
2 x 0.5 x 0.510.5
2 x 1 x 0.511
2 x 1 x 112
This table refers to the industry standard unit sizes; non-standard unit sizes are available in dimensions of multiples of the mesh opening



Normal Box sizes (m)NO. of diaphragms (pcs)Capacity per box (m³)
1.0x1.0x0.5None0.50
1.0x1.0x1.0None1.00
1.5x1.0x0.5None0.75
1.5x1.0x1.0None1.50
2.0x1.0x0.511.00
2.0x1.0x1.012.00
3.0x1.0x0.521.50
3.0x1.0x1.023.00
4.0x1.0x0.532.00
4.0x1.0x1.034.00



Corrosion ProtectionGalvanized95% Zinc + 5% AluPVC Coated
Mesh Size50.8 x 50.8mm76.2 x76.2mm50.8 x 50.8mm76.2 x76.2mm50.8 x 50.8mm76.2 x76.2mm
Unite SizeWire DiameterWire DiameterWire Diameter
1 x 1 x 1m3.0mm,4.0mm,5.0mm3.0mm,4.0mm,5.0mm3.0mm/3.8mm
2 x 1x 1m3.0mm,4.0mm,5.0mm3.0mm,4.0mm,5.0mm3.0mm/3.8mm
3x 1 x 1m3.0mm,4.0mm,5.0mm3.0mm,4.0mm,5.0mm3.0mm/3.8mm
4 x 1 x 1m3.0mm,4.0mm,5.0mm3.0mm,4.0mm,5.0mm3.0mm/3.8mm
1 x 1 x 0.5m3.0mm,4.0mm,5.0mm3.0mm,4.0mm,5.0mm3.0mm/3.8mm
2 x 1x 0.5m3.0mm,4.0mm,5.0mm3.0mm,4.0mm,5.0mm3.0mm/3.8mm
3x 1 x 0.5m3.0mm,4.0mm,5.0mm3.0mm,4.0mm,5.0mm3.0mm/3.8mm
4 x 1 x 0.5m3.0mm,4.0mm,5.0mm3.0mm,4.0mm,5.0mm3.0mm/3.8mm

Product Details

Product Type:

Material: Low carbon steel wire, galvanized wire, galfan

Wire diameter: 2.0-5.0mm

Surface: Galvanized or Galfan or PVC coated and PE coated finished

The wire used to manufacture double twisted gabion wire mesh is soft annealed, mild steel wire provided with heavy zinc coating as per EN 10244/ASTM A 641 to prevent corrosion. In case of use in aggressive environments, it is further extruded with 0.5mm thick PVC Coating.

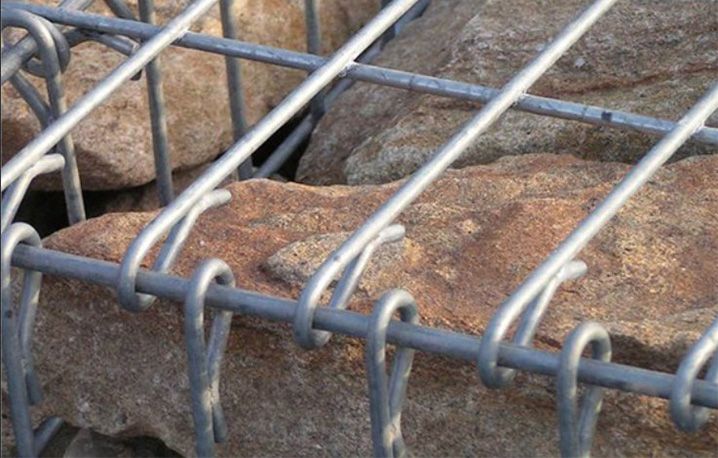

Product Feature

Product Feature

Easy to hande and install
Uniform edge cutting
Large inventory

High zinc coating thus anti-rust and anti-corrosive

Various solids can be used with gabion mesh to make prappearance

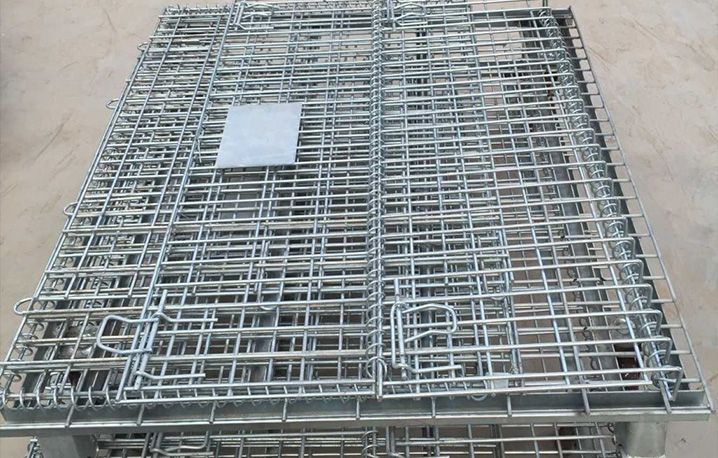

Product Packing & Shipping

Product Packing & Shipping

1. Packaged in a bundle.

2. Packed on the pallet.

3. OEM packing.

FAQ

Q: Are you manufacturer or trader?

A: We are manufacturer,and we are in fence field for more than 20 years.

Q: What's the lead time?

A: Normally our lead time is 5-25 days after we received the down payment. Urgent order can be negotiated.

Q: Can you provide samples?

A: Yes, we can provide samples with free charge, but the express cost need you pay first. When you placed the order, we will deduct the express cost from the contract amount.

Q: How do you control the goods quality?

A: We have the strict Quality Control System. And our quality inspector will record the production process and inspection from beginning to end in the form of photos or videos to you.

Q: Do you have quality guaranteed?

A: Yes, most of our products have a more than 10 years Quality Guarantee.

Q: Could you supply Door-to-Door Delivery?

A: Yes, we are very good at Door to Door Delivery, please inform me your detailed address, then I will quote you the freight cost to your home directly.

Q: How do we go to your factory for visiting?

A: Please inform me your flight time, we will pick you up at our nearby airport, then drive to our factory for visiting.
